5P 63A Industrial Plug Sockets IP67 Weather Protected Watertight

Name: 5P 63A Industrial Plug Sockets IP67 Weather Protected Watertight
Brand: HYPER
Price: 1 USD

Quality 5P 63A Industrial Plug Sockets IP67 Weather Protected Watertight for sale

Brand Name : HYPER

Model Number : 335

Certification : DIN VDE 0623 EN/IEC 60309-2

Place of Origin : China

MOQ : 500pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs / month

Delivery Time : 15 days

Packaging Details : packed by standard paper carton

Material : PBT

Pole : 3P+N+E

Voltage : 380V

Current : 63A

Protection Type : IP67 Watertight

Weight : 664g

Contact Now

335 5P 63A 380-415V Standard Industrial Socket IP67 Weather-protected 3rd Generation Industrial Plug Sockets

Description:
These products are used for connection of equipment in all kind of applications where it needs to be possible to connect and disconnect. Hanben industrial plugs and sockets are chosen when safety, reliability and durability is requested.

Application:

Reliable contacts prevent stops and power breaks, which leads to increased productivity.
Durable equipment prevents time and cost lost due to maintenance.
Safe connections prevent accidents.

Technique Parameter:

Current	Poles	110V	230V	400V	500V	＞50-500	＞50-500	Packing unit	Weight
Current	Poles	50a.60Hz	50a.60Hz	50a.60Hz	50a.60Hz	100-300Hz	a.300-500Hz	Packing unit	Weight
3Poles	4Poles	5Poles	3Poles	4Poles	5Poles	3Poles	4Poles	5Poles	3Poles
4h	4h	4h	6h	9h	9h	9h	6h	6h	7h
63	5			1128				5	664

Earth Contact Position	6h
Rated Current(A)	63
Poles	5
Dimension(mm)	a	107
	b	100
	c	84
	d	85
	e	77
	f	6.5
	g.	14
	g.1	2
	h	113
	h1	118
	k	55
	l	88
Cable nominal cross-sectional area	10-16

Product Dimension:
5P 63A Industrial Plug Sockets IP67 Weather Protected Watertight

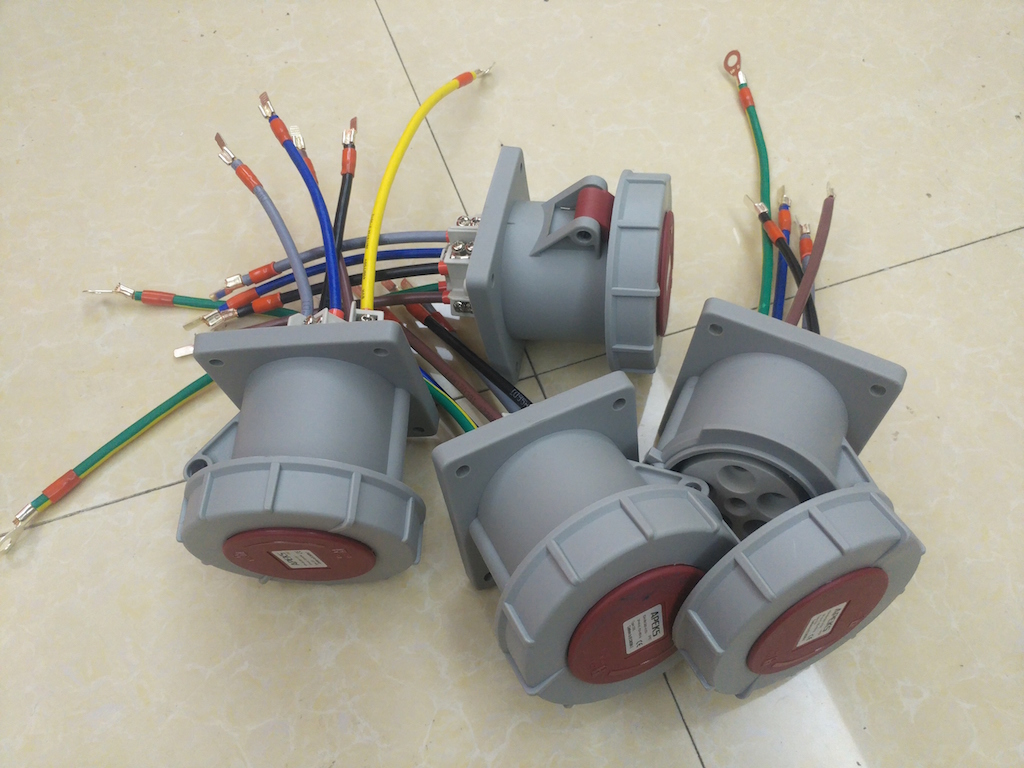

Picture:
